Product Dimensions 5.25"h x 17"w x 11.75"d
Give your home entertainment system a cinematic upgrade with the STR-DH790 7.2ch AV receiver. Experience the same all-encompassing surround sound you get in movie theatres at home with Dolby Atmos and DTS:X support. Plus, superior picture quality to match with 4K HDR pass through.Read More
Give your home entertainment system a cinematic upgrade with the STR-DH790 7.2ch AV receiver. Experience the same all-encompassing surround sound you get in movie theatres at home with Dolby Atmos and DTS:X support. Plus, superior picture quality to match with 4K HDR pass through.
For stunning surround sound like in the latest cinemas.
Enjoy superior picture quality with greater contrast, color and brightness.
Smooth auto calibration optimists and aligns your speakers for an optimum setup.
With support for Dolby Atmos and DTS:X, you get surround sound like they have in movie theatres. Rich, lifelike and all-encompassing.
Dolby Atmos delivers breath-taking realism with 360º surround sound, by accurately positioning sound from every angle in your environment – even from above. The result is rich audio that completely envelops you.
DTS:X decoding delivers multi-dimensional surround sound that adapts to your speaker configuration in real time. Sound is positioned precisely around and above you, thanks to object-based audio decoding.
No matter what space or setup you’re working with, the flexible STR-DH790 works with your speakers to make sure you get all-round stunning sound.
Put yourself at the heart of the action with an immersive 5.1.2 channel surround speaker system, delivering lifelike audio from every angle—even above.
Get the real big screen experience with a fully-fledged 7.1 channel surround speaker system. The ideal way to close up any gaps in your sound space—even in bigger rooms.
Ideal for smaller rooms, S-Force PRO Front surround delivers a virtual surround acoustic field using only two speakers.
If you’re working with different combinations of speakers, our seamless auto calibration technology will have them all delivering the same high-quality sound. Automatic Phase Matching aligns the phase characteristics of your speakers to the front left and right speaker channels, so they all work perfectly together to deliver a more effective surround sound experience.
By supporting High Dynamic Range (HDR) signal pass-through, you can enjoy the incredible jump in contrast and brightness it brings—and the additional shadow detail and highlights further enhance picture detail and brings colour to life. Latest HDR standards such as HDR10, HLG (Hybrid Log-Gamma) and Dolby® Vision are supported.
Maintain 4K quality from source to screen. 4K passthrough allows a signal to pass through the receiver without compromising image quality and is HDCP 2.2 compatible.
Not only can you connect to the STR-DH790 through Bluetooth® and stream all your favourite tracks, but with Bluetooth® Standby, you can turn your receiver on straight from your paired smartphone or tablet.
The STR-DH790 is designed to fit seamlessly into your existing home entertainment. With a thinner profile and packed with inputs and outputs, just plug in and enjoy movie theatre quality straight from your sofa.

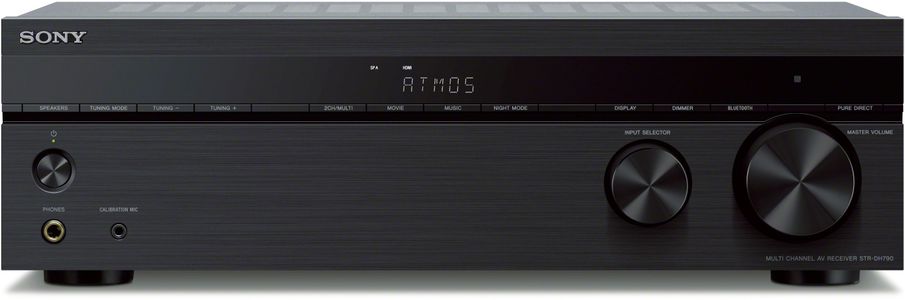

The sleek, understated control panel will blend seamlessly with any décor.
Just plug in and press play. With four HDMI inputs and one output, optical/coaxial digital and analogue Audio connections, you can connect your UHD Blu-ray Disc™ player, TV and games console easily.
With a robust, space-saving design, the receiver can easily fit into your media unit. Plus, a rigid chassis reduces vibration to help maintain signal fidelity.
Give your home entertainment system a cinematic upgrade with the STR-DH790 7.2ch AV receiver. Experience the same all-encompassing surround sound you get in movie theatres at home with Dolby Atmos and DTS:X support. eARC lets you enjoy these latest audio formats with one-cable HDMI connection from your compatible TV. Plus, superior picture quality to match with 4K HDR pass through.
Quality surround sound with Dolby® Atmos and DTS:X support
4in/1out HDMI connectivity with 4K/60p (4:4:4) pass-through, HDCP 2.2 support and HDR support
Easy Bluetooth® connectivity
Space-saving design to fit in media units
High-Resolution Audio compatible
General Specs | |
| Product Weight (lbs.) | 16.37 |
| Depth (in.) | 11.75 |
| Width (in.) | 17 |
| Height (in.) | 5.25 |
| Channels | 7.2 |
| Bluetooth Capable | Yes |
| Color | Black |
| Width (cm) | 43.18 |
| Height (cm.) | 13.33 |
| Depth (cm.) | 29.84 |
| Product Weight (kg) | 7.42 |
Amplifier/Receiver Audio Features | |
| A/V SYNC | Yes (Variable) |
| A/V Sync Time/Sampling Frequency | 0-300msec |
| Cross Over Frequency | 17 points (40-200Hz) |
| Decodable Channel Number | 7ch |
| Night Mode | Yes |
| OP Processing | Yes |
| Pure Direct | Yes |
| Speaker Selector | A/B/A+B/OFF |
| Speaker Terminal Type | Screw (Ni) for Front, Push for Center, Surround and Surround Back |
Audio Input | |
| Analog Audio In | 4 |
| Coax | 1 |
Audio Output | |
| Headphone Out | Yes (Gold) |
| Pre Out (Subwoofer) | 2 |
DCAC Features | |
| Automatic Phase Matching | Yes |
| D.C.A.C. EX / Advanced D.C.A.C. / D.C.A.C. | Advanced D.C.A.C only |
Output Power | |
| Center | 145W (6 ohms, 1kHz, 1ch THD 0.9%) |
| Front | 145W (6 ohms, 1kHz, 1ch THD 0.9%) |
| Number of Amp. Channels | 7 |
| Speaker Impendance | 6-16 ohms |
| Surround | (6 ohms, 1kHz, 1ch THD 0.9%) |
| Surround Back | 145W ( 6ohms, 1kHz, 1ch THD 0.9%) |
Sound Field | |
| 2ch | Yes |
| Audio Enhancer | Yes |
| Auto Format Decoding | Yes |
| Direct | Yes |
| Dolby Surround | Yes |
| Front Surround | Yes |
| Headphone 2ch | Yes |
| Multi Stereo | Multi Ch Stereo |
| Neural:X | Yes |
Speaker Output | |
| Bi-Amp | Yes Common with Surround Back) |
| Center | Yes |
| Front A | Yes |
| Front B | Yes Common with Surround Back) |
| Height | Yes Common with Surround Back) |
| Surround | Yes |
| Surround Back | Yes |
Tone Control | |
| Center (Bass/Treble) | Yes |
| Front (Bass/Treble) | Yes |
| Height (Bass/Treble) | Yes |
| Surround (Bass/Treble) | Yes |
| Surround Back (Bass/Treble) | Yes |
Tuner | |
| Auto Tuning | Yes |
| FM/AM | FM Only |
| Preset Channel (FM/AM) | TTL30 (30/-) |
| Station Name | Yes |
Video Input | |
| HDMI Input Supporting HDCP2.2 (Front) | 4 |
Video Output | |
| HDMI Output Supporting HDCP2.2 | 1 |
HDMI Audio Features | |
| Audio Return Channel | Yes |
HDMI Decoding Formats | |
| DSD | Yes (Up to 2.8MHz 5.1ch) |
| DTS / DTS-ES (Matrix6.1 / Discrete6.1) | Yes/Yes |
| DTS 96/24 | Yes |
| DTS HD MA / DTS HD HR | Yes/Yes |
| DTS:X | Yes |
| Dolby Atmos | Yes |
| Dolby Digital | Yes |
| Dolby Dual Mono | Yes |
| Dolby TruHD/Dolby Digital Plus | Yes/Yes |
| LPCM | Yes (Up to 192kHz/24bit 7.1ch) |
HDMI Others | |
| Audio Widget | Yes |
| BRAVIA® SYNC™ (CEC Control) | Yes |
| Standby Through | Yes |
HDMI Video Features | |
| 4K 60p 4:4:4 Support | Yes |
| HDR | Yes (HDR10, Hybrid Log-Gamma, Dolby Vison) |
Customize Features | |
| Input Assign (HDMI/Component/Opt/Coax) | Yes (Opt/Coax) |
| Sleep Timer | Yes (up to 2 hours) |
General | |
| Auto Standby | Yes |
| Pin Jack | Nickel |
| Power Consumption | 240W |
| Power Consumption(Power Stand By) | 0.3W; Bluetooth Standby: 0.5W |
| Power Requirement | AC 120V 60Hz |
| Remote Commander | RMT-AA401U |
| System Update (Internet/USB/PC) | Yes (USB only) |
Accessories | |
| Supplied Accessories | Remote (RMT-AA401U) Batteries FM antenna Calibration mic (mono) |
